Switch PoE Ubiquiti Flex 2.5G

Overview

Dimensions
212.9 x 99.4 x 33.5 mm
(8.4 x 3.9 x 1.3″)

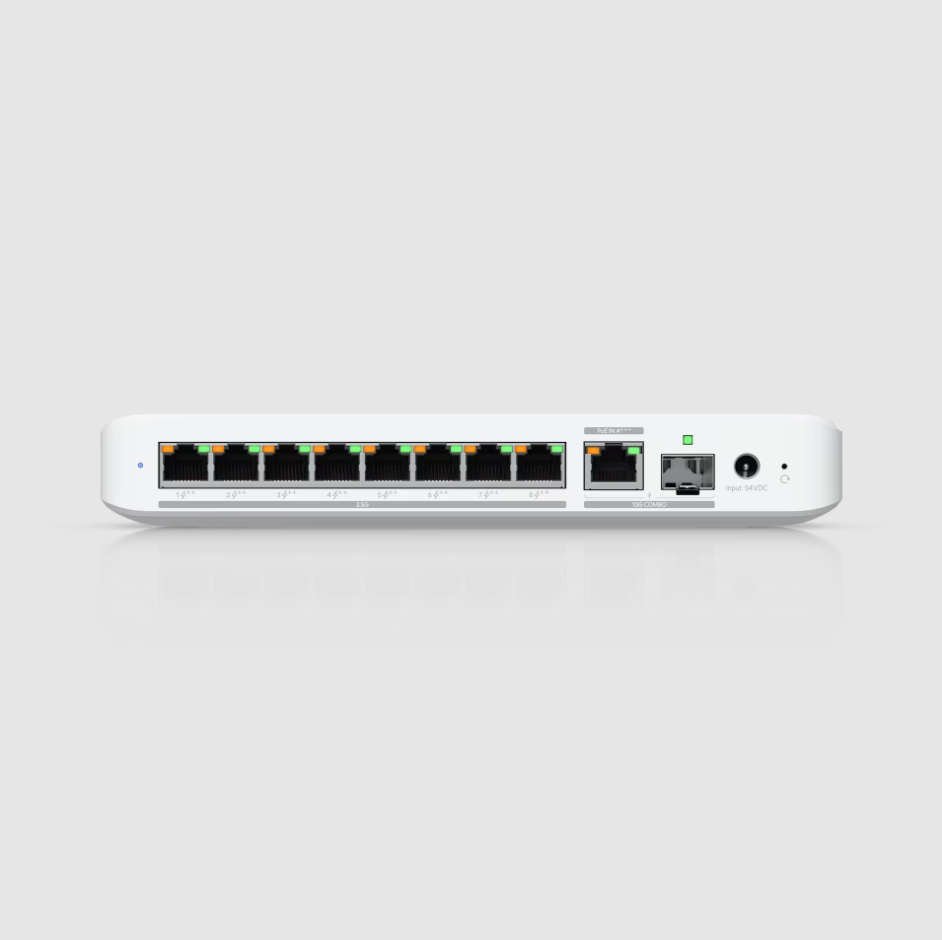

Port Layout
2.5 GbE RJ45: 8 (All PoE++)(2.5G/1G/100M/10M)
10 GbE RJ45: 1 (PoE+++) (10G/5G/2.5G/1G/100M)
10G SFP+: 1 (10G/1G)
Max. PoE Output
Up to PoE++
Total PoE Availability
PoE+++ input: 76W
PoE++ input: 46W
PoE+ input: 16W
210W AC adapter input: 196W
Form Factor
Compact Desktop, wall, DIN, magnetic

Performance

Switching Capacity
60 Gbps
Total Non-Blocking Throughput
30 Gbps
Forwarding Rate
45 Mpps
Supported VLANs
256
MAC Address Table Size
4,000

Layer 2 Features

STP & RSTP
✓
Egress Rate Limit
✓
Flow Control
✓
Storm Control
✓
Multicast & Broadcast Rate Limiting
✓
Port Isolation
✓
Port Mirroring
✓
Jumbo Frames
✓
Loop Protection
✓

Hardware

PoE Ports
PoE++: 8
Max. PoE Wattage per Port by PSE
PoE: 15.4W
PoE+: 32W
PoE++: 64W
Max. Power Consumption
14W (Excluding PoE output) with PoE input
17W (Excluding PoE output) with AC adapter input
210W (Including PoE Output)
Power Method
(1) AC/DC adapter (Excluded)
(1) PoE+++
Power Input Method
DC Input
PoE
Supported Voltage Range
50—57V DC/PoE
Management
Ethernet
Weight
567 g (20 oz)
Enclosure Material
Polycarbonate
Mount Material
Polycarbonate
Ambient Operating Temperature
-20 to 45° C (-4 to 113° F)
Ambient Operating Humidity
10 to 90% noncondensing
NDAA Compliant
✓
Certifications
CE, FCC, IC

Software

Application Requirements
UniFi Network: Version 9.0.114 and later
