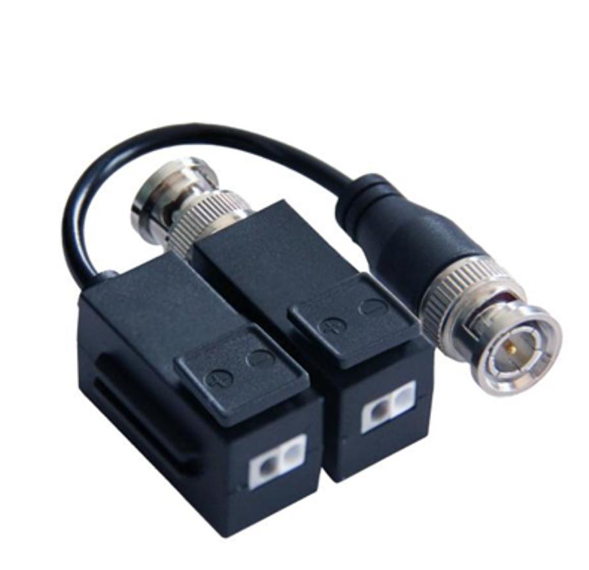

Video Balun Hikvision DS-1H18S/E(C)

Especificaciones:

Properties

• Transmission Signal1 channel
• Distancia de transmisiónMax 350m
• Category TypeUTP CAT 5E/ 6

---

Video Transmission Properties and Port

• Coaxial Video ConnectorBNC-M
• Twisted-pair Video ConnectorTool-less push-pin terminal block
• Compatible FormatHD-TVI/TVI/AHD/CVBS
• Resolución720P/960P/1080P/3MP/4MP/5MP/8MP
• Ant-interference>60dB

---

Protección

• ESD

  Contact discharge electricity level3

  air discharge electricity level3

  Per: IEC61000-4-2

• Coaxial Cable Connector2KV(common-code) Per:IEC61000-4-5
• UTP Cable Connector

  2KV(different-code),

  2KV(common-code)

  Per:IEC61000-4-5

---

Impedancia

• BNC Male75 ohms
• UTP Cable100 ohms

---

Physical Properties

• ShellABS engineering plastic
• ColorBlack
• Dimensions ( L x W x H )175.3*15.4*17.8mm (BNC connector & cable excluded)
• Weight39 g

---

Stability

• MTBF>10000 h

---

Environmental

• Temperatura de funcionamiento-20º ~55º C
• Temperatura de almacenamiento-40º ~ 150º C
• Humidity0~95% (non-condensing)
