| Chipset | – Intel® Z790 |
|---|---|
| CPU | – Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) – Supports Intel® Hybrid Technology – Supports Intel® Turbo Boost Max 3.0 Technology – Supports Intel® Thermal Velocity Boost (TVB) – Supports Intel® Adaptive Boost Technology (ABT) |
| Memory | – Dual Channel DDR5 Memory Technology – 4 x DDR5 DIMM Slots – Supports DDR5 non-ECC, un-buffered memory up to 6800+(OC) – Max. capacity of system memory: 256GB – Supports Intel® Extreme Memory Profile (XMP) 3.0 *1DPC 1R Up to 6800+ MHz (OC), 4800 MHz Natively.
1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively. 2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively. 2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively. |
| Onboard Graphics | – Intel® Xe Graphics Architecture (Gen 12) – 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz – 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
|
| Slot | CPU: – 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: – 1 x PCIe 4.0 x16 Slot (PCIE4), supports x4 mode* – 1 x PCIe 3.0 x16 Slot (PCIE5), supports x1 mode* – 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)* – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) – Supports AMD CrossFire™ *Supports NVMe SSD as boot disks
|
| Audio | – 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| Storage | 4x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 6x SATA 6G (Qty) |
| RAID | – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices – Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices |
| USB | – 1 x USB 3.2 Gen2x2 Type-C (Rear) – 1 x USB 3.2 Gen2 Type-A (Rear) – 1 x USB 3.2 Gen1 Type-C (Front) – 9 x USB 3.2 Gen1 Type-A (5 Rear, 4 Front) – 3 x USB 2.0 (1 Rear, 2 Front) * All USB ports support ESD Protection
|
| LAN | – Gigabit LAN 10/100/1000 Mb/s – Intel® I219V |
| Internal IO | – 1 x eDP Signal Connector – 1 x SPI TPM Header – 1 x Power LED and Speaker Header – 1 x RGB LED Header* – 3 x Addressable LED Headers** – 1 x CPU Fan Connector (4-pin)*** – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** – 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** – 1 x 24 pin ATX Power Connector – 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) – 1 x Front Panel Audio Connector – 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) – 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) – 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) – 1 x Front Panel Type C USB 3.2 Gen1 Header *Supports in total up to 12V/3A, 36W LED Strip **Support in total up to 5V/3A, 15W LED Strip ***CPU_FAN1 supports the fan power up to 1A (12W). ****CPU_FAN2/WP supports the fan power up to 2A (24W). *****CHA_FAN1~5/WP support the fan power up to 2A (24W). *****CPU_FAN2/WP and CHA_FAN1~5/WP can auto detect if 3-pin or 4-pin fan is in use. |
| WIRELESS LAN & BLUETOOTH | – 802.11ac WiFi Module – Supports IEEE 802.11a/b/g/n/ac – Supports Dual-Band (2.4/5 GHz) – Supports high speed wireless connections up to 433Mbps – Supports Bluetooth + High speed class II |

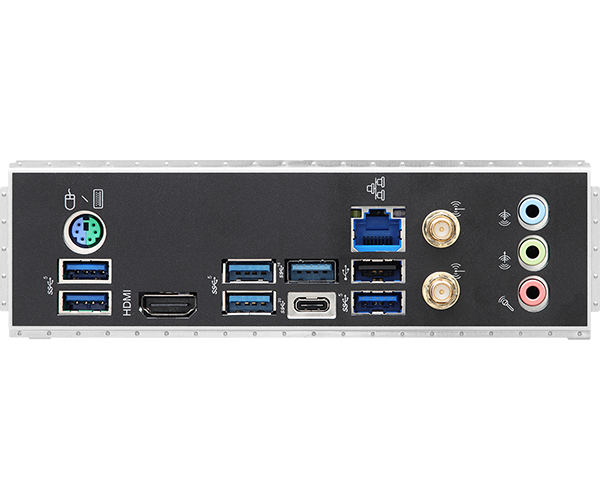

| BACK PANEL PORTS | – 2 x Antenna Ports – 1 x PS/2 Mouse/Keyboard Port – 1 x HDMI Port – 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) – 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) – 5 x USB 3.2 Gen1 Ports – 1 x USB 2.0 Port – 1 x RJ-45 LAN Port – HD Audio Jacks: Line in / Front Speaker / Microphone |
| OPERATING SYSTEM | – Microsoft® Windows® 10 64-bit / 11 64-bit
*Windows® 10 only supports version 21H2 or later
|
| PCB Info | – ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm |
Componentes para PC, Motherboard

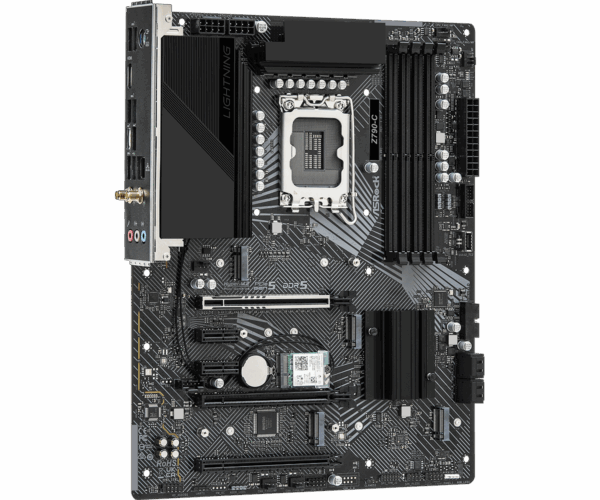

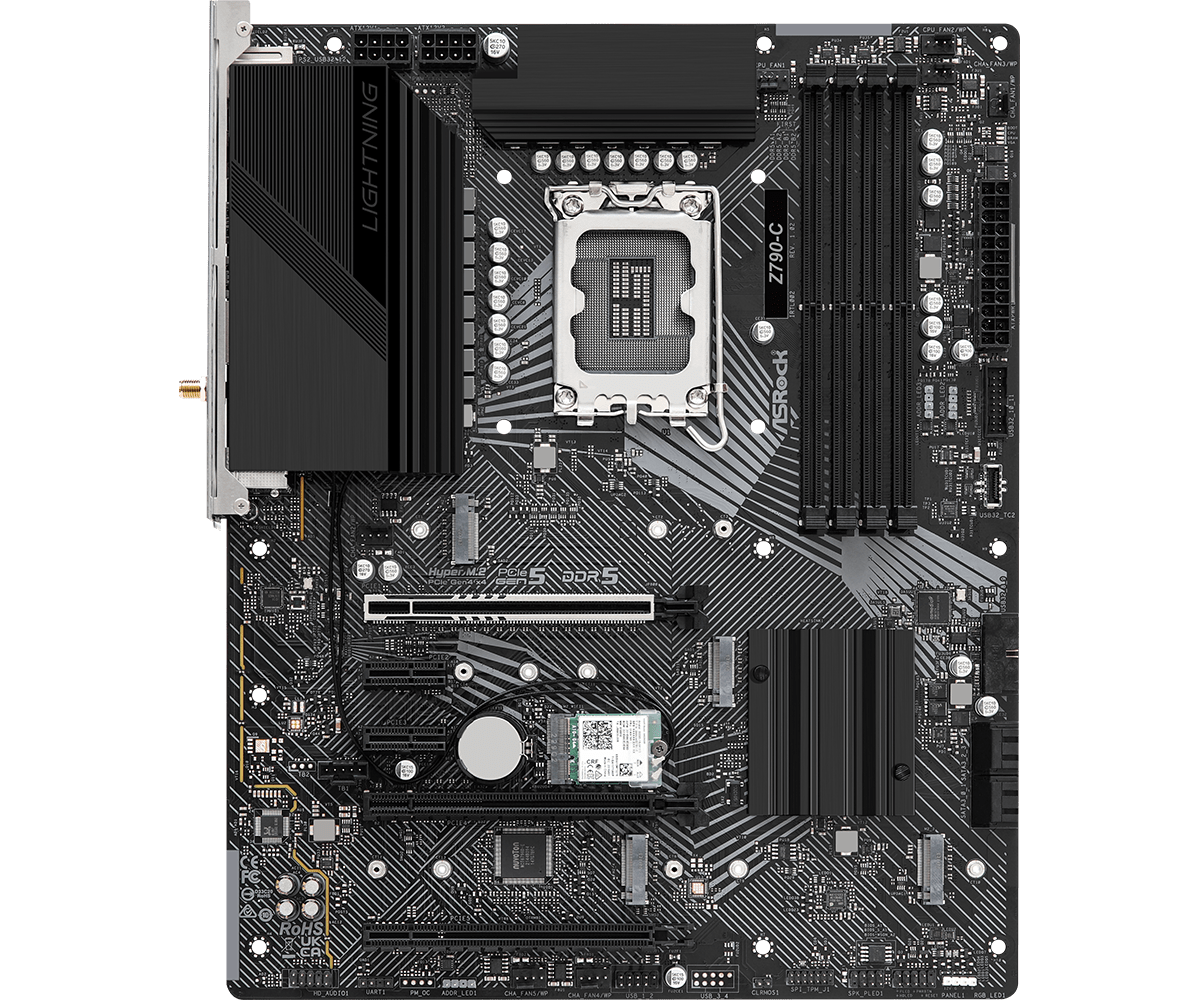

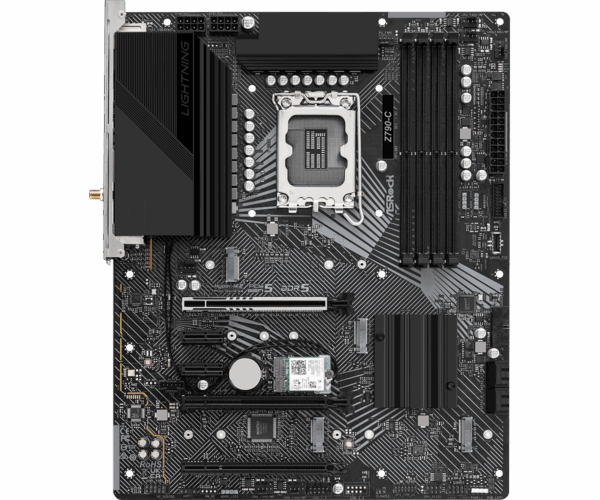

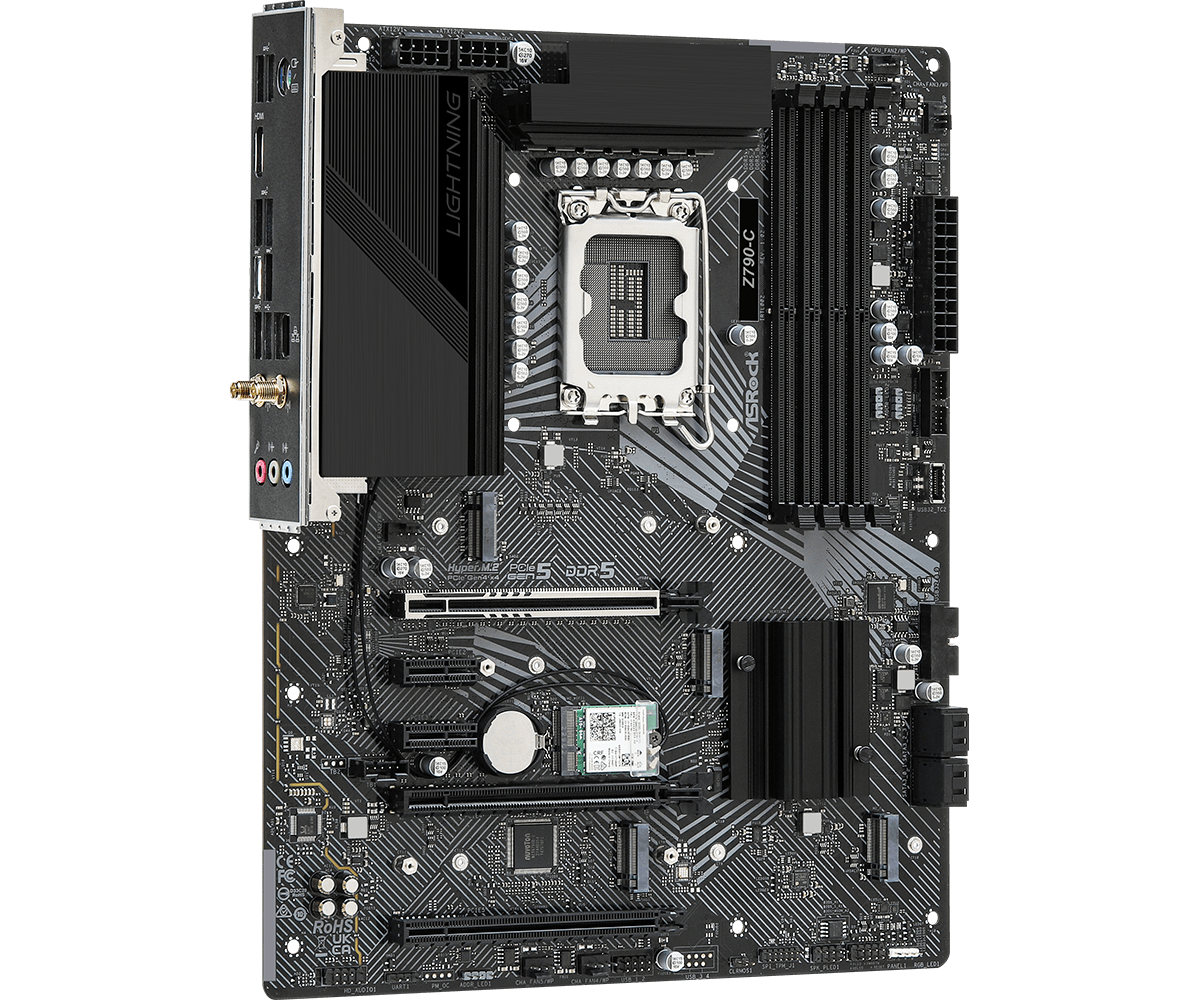

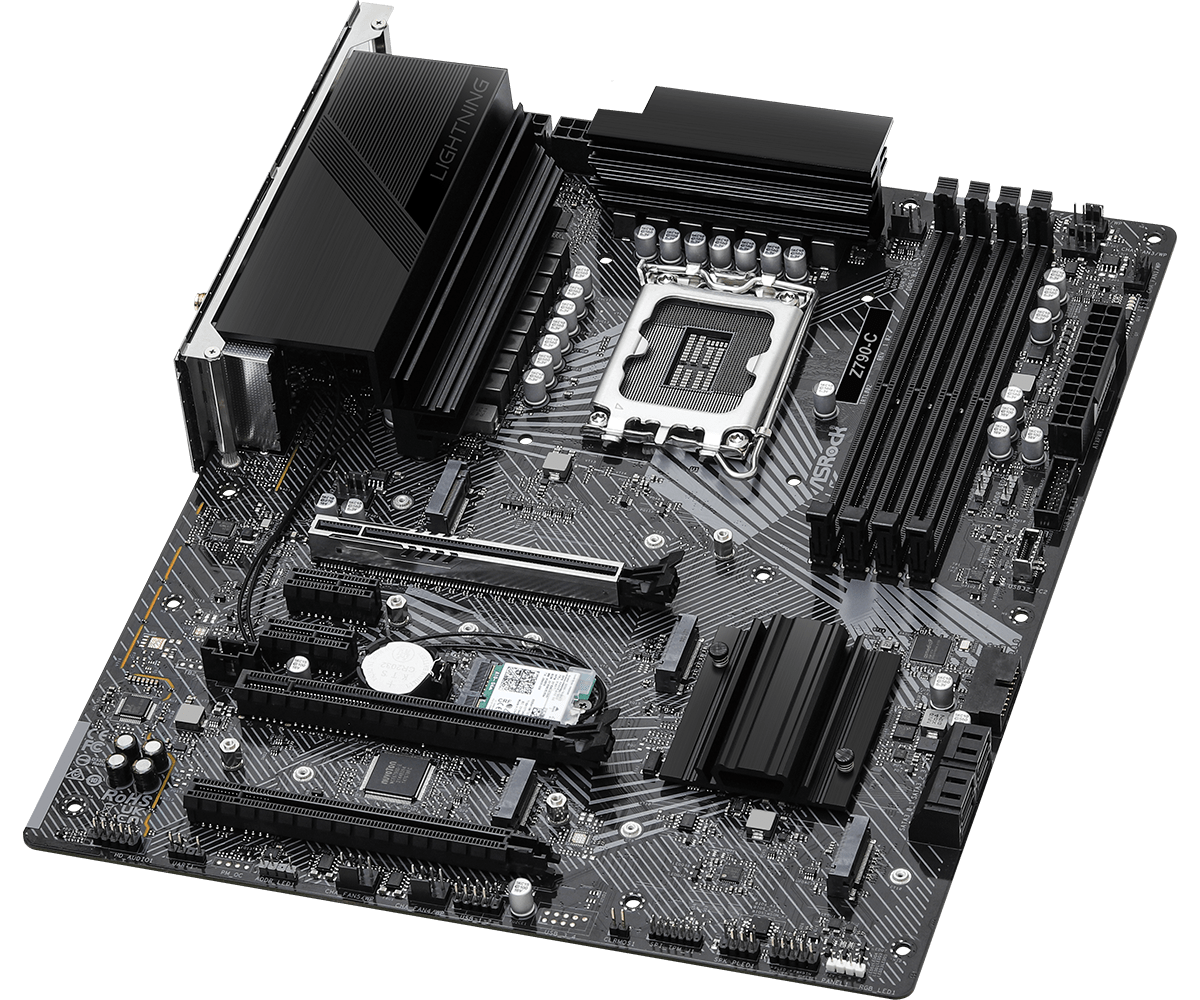

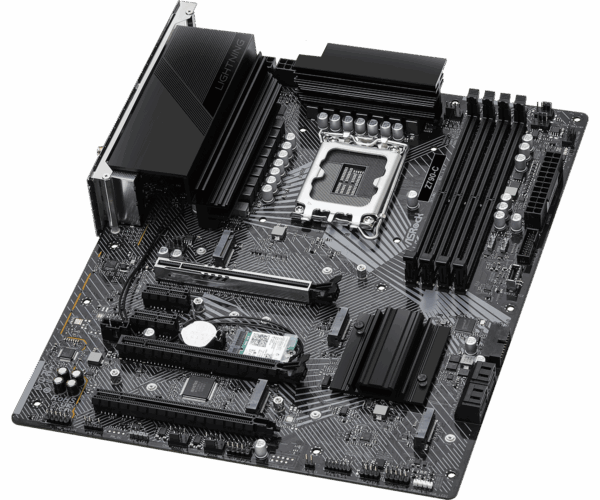

Motherboard Asrock Z790-C Wifi (LGA1700, DDR5, 4x M.2, 1x RGB, 3x ARGB, 1x Thunderbolt, 1Gbps LAN)
$160.00
